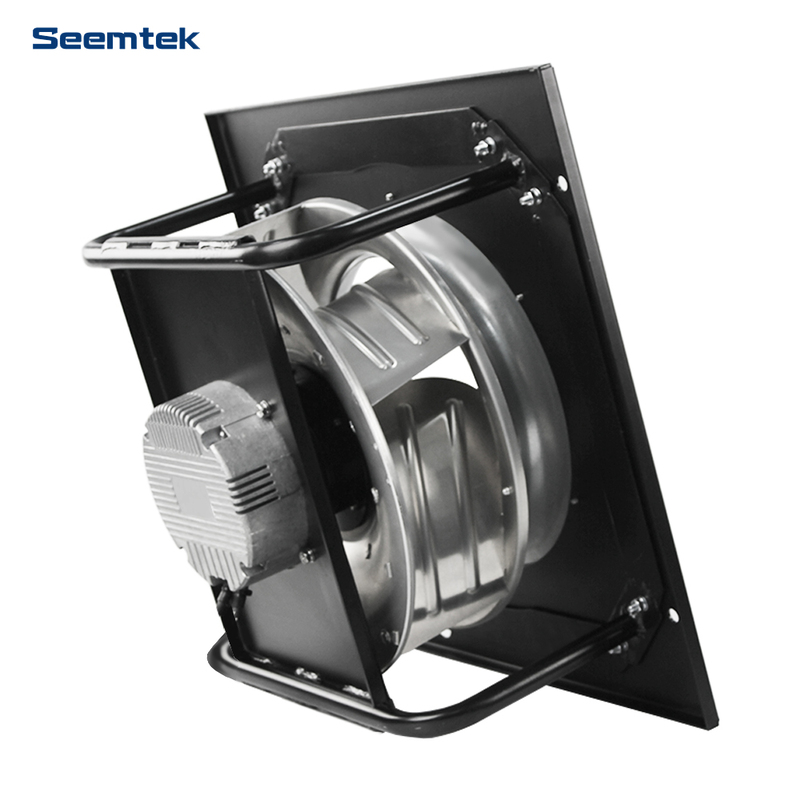

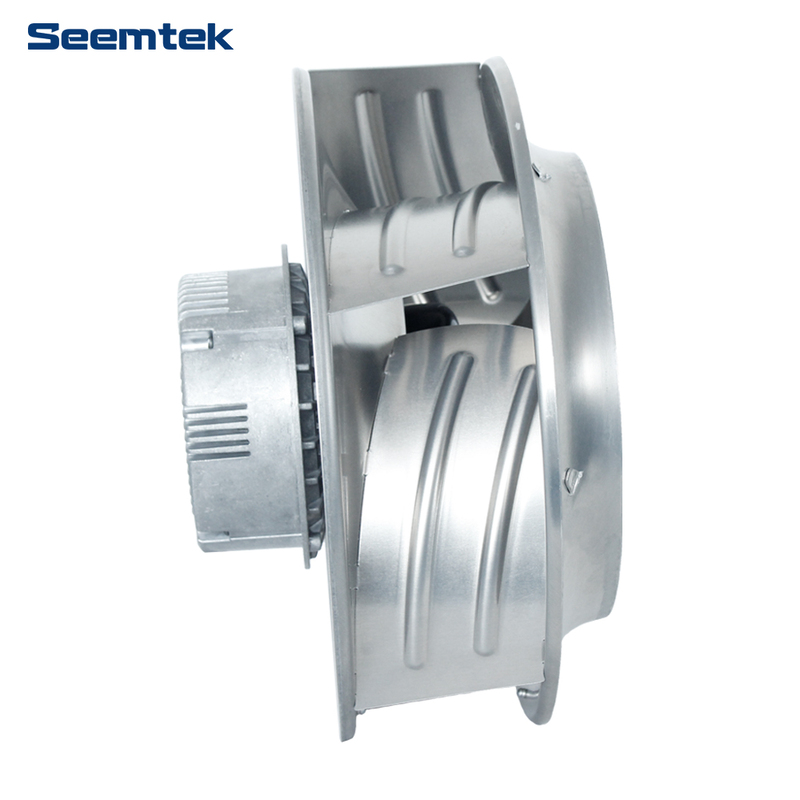

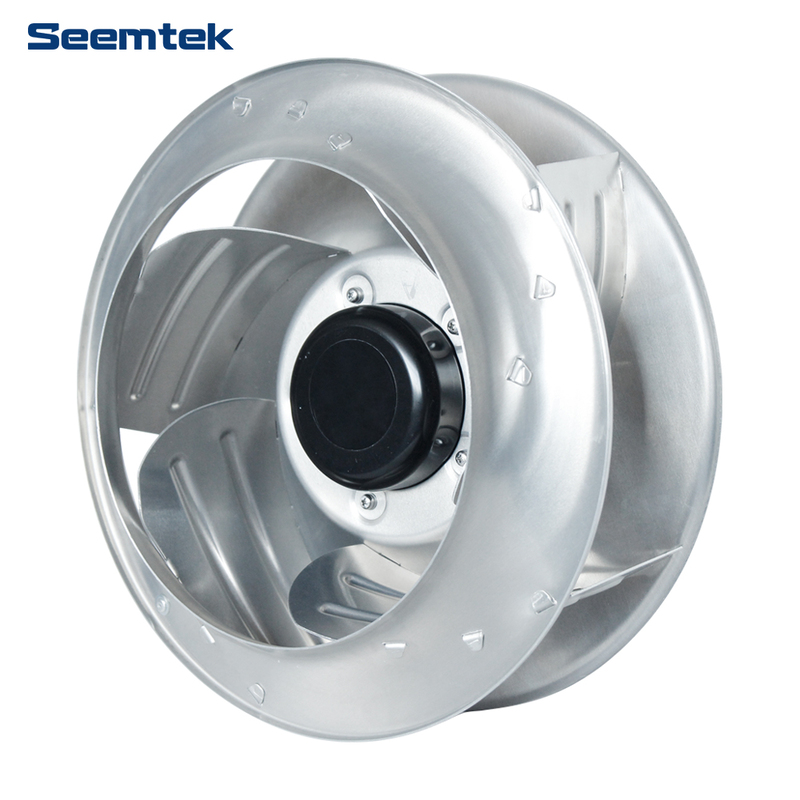

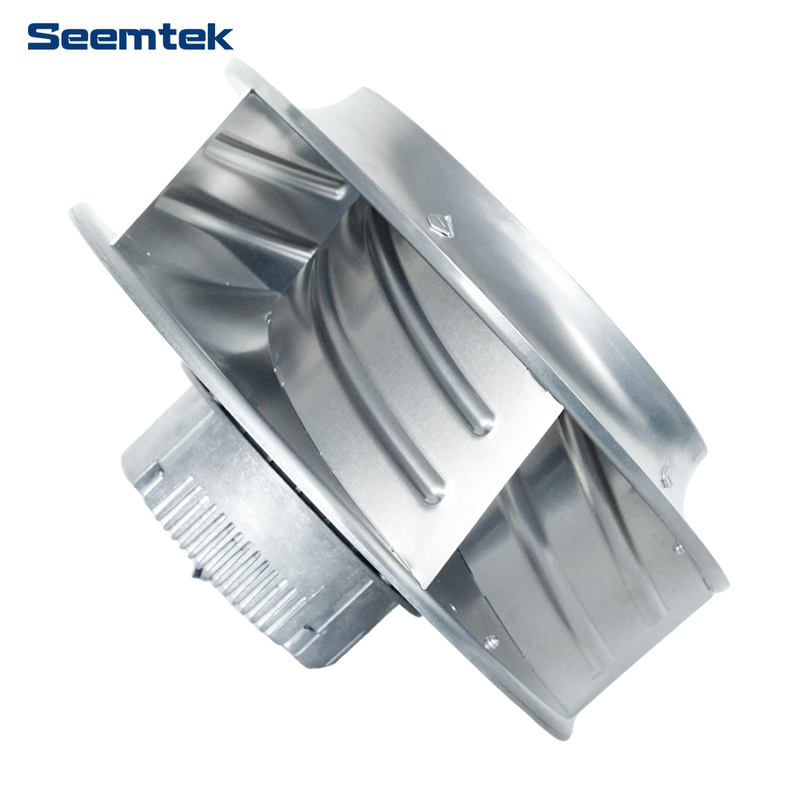

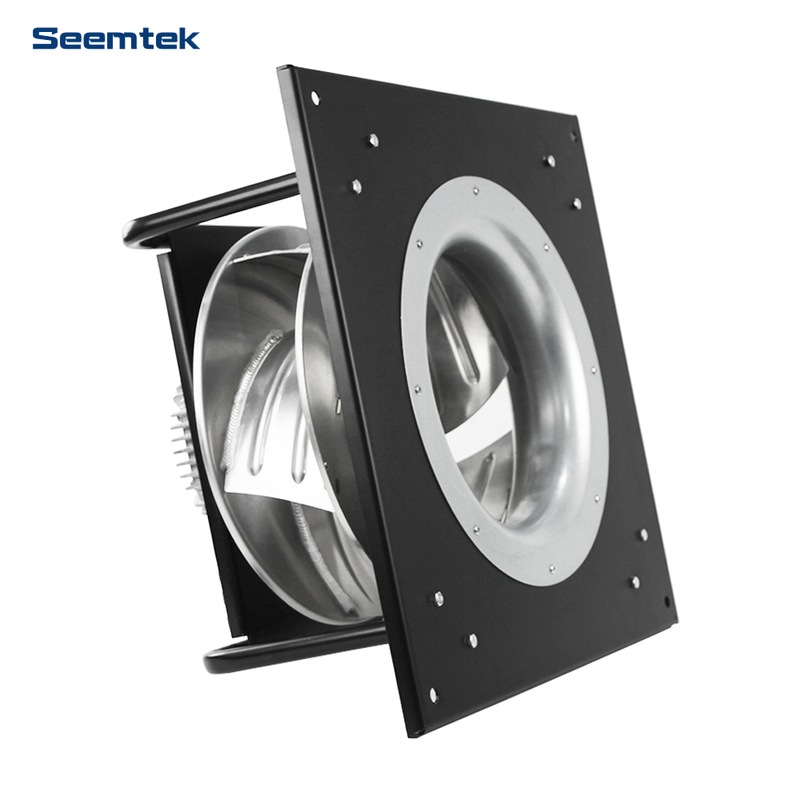

560mm 380v iAluminiyam isakhelo somoya omkhulu ngasemva kwiiFani ze-Centrifugal ezine-EC Motors

Uhlobo lombane: AC

Uhlobo lweMoto: I-BLDC yaNgaphandle ye-Rotor Motor

I-Impeller Diameter: 560mm

I-Impeller Material: iAluminiyam

Ukulawula isantya: 0-10VDC

Uhlobo loKhuselo: IP54

Iklasi yokuvala: F

Ubushushu bokusebenza : - 25 ℃ ~ +60 ℃

Ukukhuselwa kweMoto: ukuKhuselwa kwe-Rotor etshixiweyo, ukuKhuselwa kwePolarity umva, uKhuseleko lwe-Thermal, i-Soft Start

BUZA KUTHI ISHITI YEDATHA

Iparameters Technical

Umzekelo No.	Voltage ikaliwe	Ukulinganiswa kwangoku	Ukulinganiswa kwamandla	Isantya esinexabiso	Ukuhamba komoya	Uxinzelelo Lomoya	Inqanaba lomsindo	Curve
Umzekelo No.	VAC	A	W	rpm	m³ / h	Pa	I-dBA	Curve
K3E-3A560-Y8-17	380	7. 1	3977	2250	13964	1700	92	A
K3E-3A560-Y8-05	380	5. 27	2600	1500	14171	965	82	B
K3E-3A560-Y8-16	380	9	5350	2550	15202	2000	95	C
K3E-3A560-Y8-04	380	7. 7	3600	1620	15275	1110	86	D

Ulwandlalo Ukuzoba

K3E-3A560-Y8-17

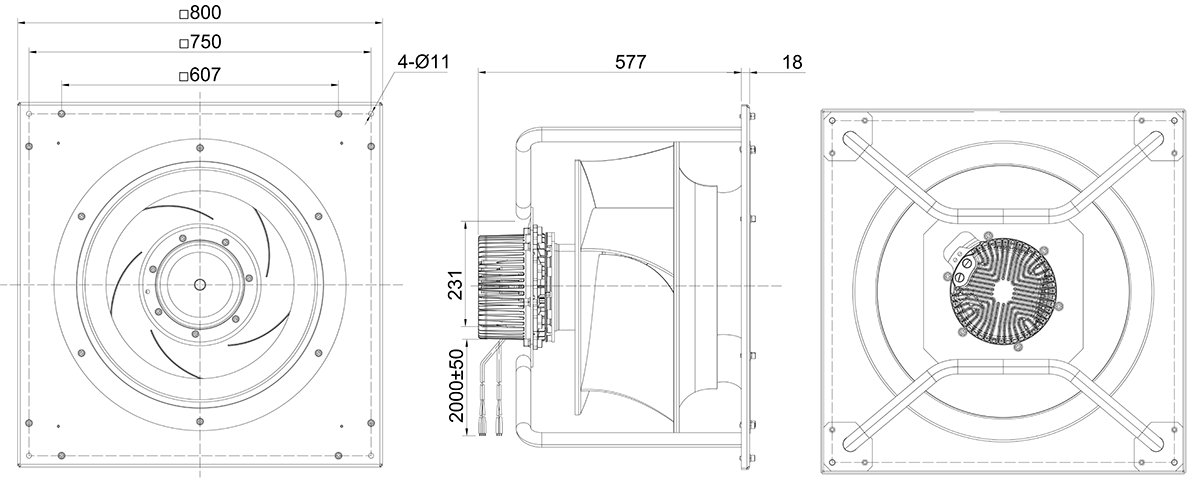

K3E-3A560-Y8-05

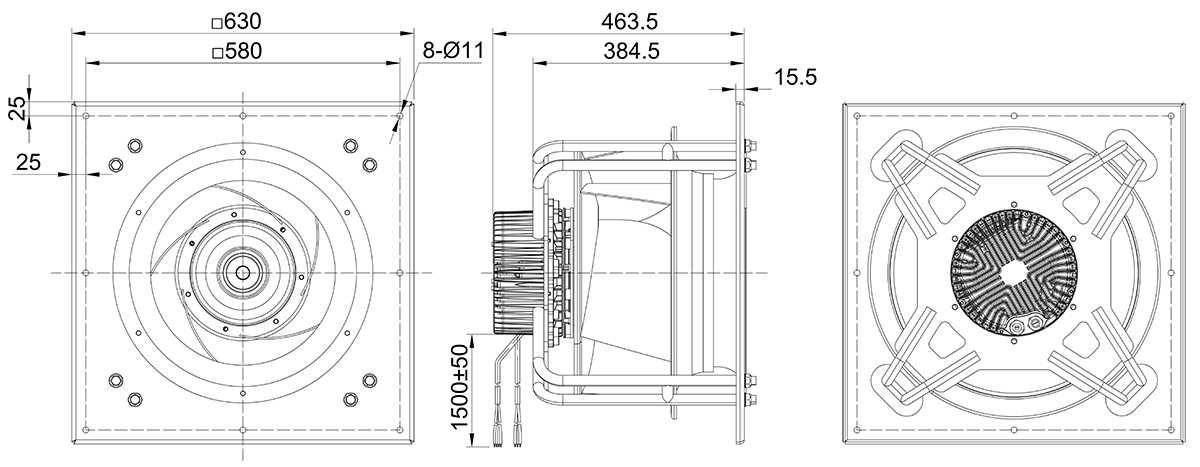

K3E-3A560-Y8-16

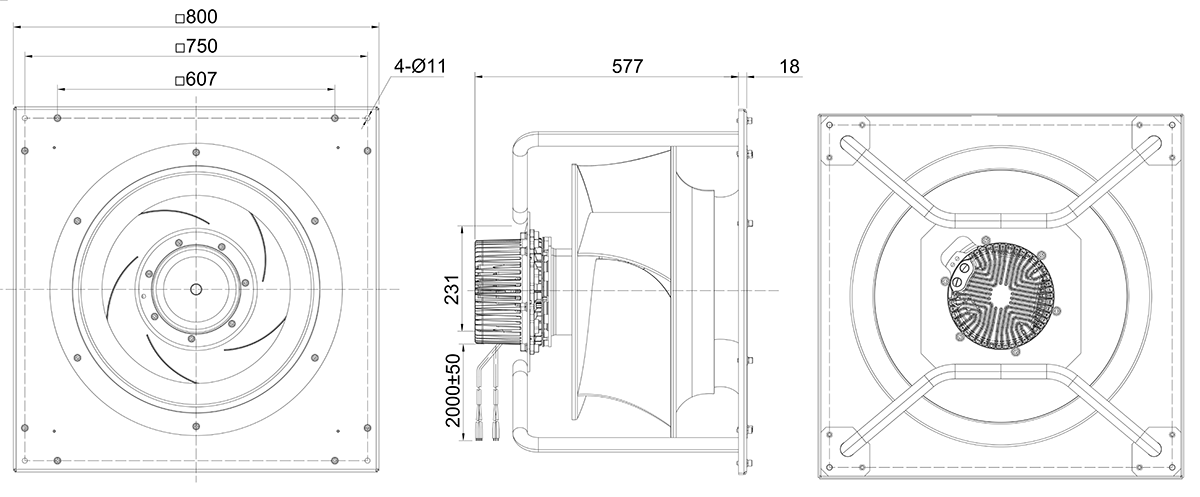

K3E-3A560-Y8-04

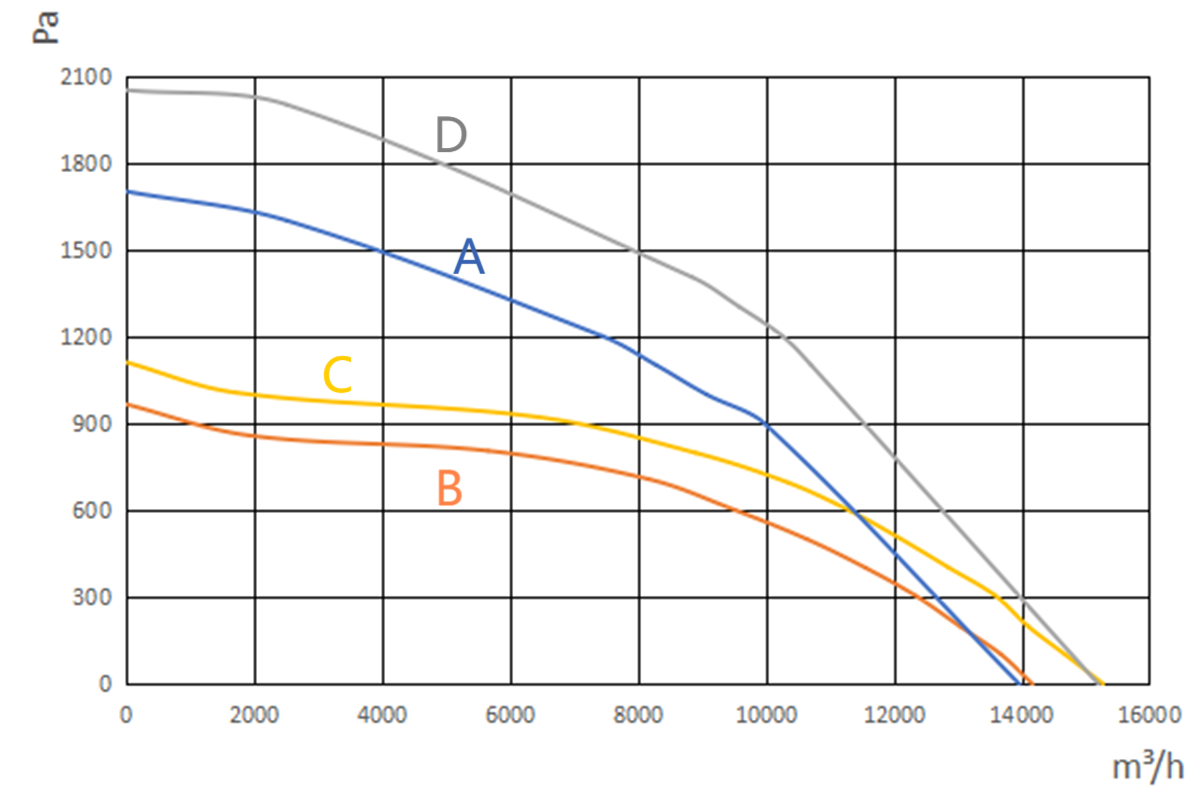

Ijika lokuSebenza

560

Field Fields

komoya

Kuyilo lwezixhobo zokungenisa umoya, impilo yabantu kunye nentuthuzelo yingqwalasela ephambili. Ingxolo ephantsi, abalandeli bentsebenzo ephezulu enikezelwa nguSeemtek baqinisekisa ukuhamba komoya ngokufanelekileyo ngelixa bephucula induduzo kunye nokukhuthaza indawo enempilo. Ngokudibanisa iisistim ze-Seemtek zokuqhuba amandla asebenzayo kunye nobuchwepheshe bokulawula obukrelekrele, abalandeli bethu be-biomimetic bahambisa ukusebenza okuzinzile kunye nokusebenza ngokufanelekileyo kuluhlu olubanzi lwezicelo, ukugcina amanqanaba engxolo aphantsi aphantse angabonakali. Inkqubo efanelekileyo yokungenisa umoya yangoku izolile, iyingqondi, kwaye inokuthenjwa kakhulu, ifezekisa ukusebenza kakuhle kwamandla kunye nokusebenza kwezoqoqosho ngolawulo oluchanekileyo kunye nohlengahlengiso olunengqondo olusekwe kwimfuno.

Field Fields

ICT

Ukuqinisekisa ukusebenza okuthembekileyo kwamaziko ogcino-lwazi, izixhobo zokungenisa umoya ezisebenzayo nezokulawula imozulu zibalulekile. Kumaziko amakhulu eenkcukacha okanye ii-hubs zonxibelelwano, iiseva, izixhobo zokugcina, kunye neeprosesa zivelisa ubuninzi obushushu ngexesha lokusebenza, kwaye nakuphi na ukungaphumeleli kokutshatyalaliswa kobushushu kunokukhokelela ekunciphiseni ukusebenza okanye ukungaphumeleli kwenkqubo.

Izisombululo ze-fan ze-Seemtek, ezenzelwe usetyenziso lweziko ledatha, zidibanisa ulawulo olukrelekrele kunye nohlengahlengiso lwetekhnoloji ukuze kugcinwe ulawulo oluchanekileyo lokuhamba komoya, ukuqinisekisa ukuba ubushushu bangaphakathi kunye namanqanaba omswakama ahlala ngaphakathi koluhlu olufunwayo. Kungakhathaliseki ukuba phantsi komthwalo ophezulu okanye kwiimeko eziguquguqukayo, abalandeli be-Seemtek banikezela ukupholisa okuzinzile kwizixhobo ezibalulekileyo ze-IT, okwenza kube yinto ebalulekileyo yokusebenza ngokufanelekileyo nangokuthembekileyo kwamaziko edatha.

Field Fields

Iteknoloji kaloliwe

Abavelisi abaninzi kunye nababoneleli kwishishini likaloliwe bakhetha abalandeli beSeemtek ngomsebenzi wabo othembekileyo kunye nomgangatho obalaseleyo. I-Seemtek ibonelela ngoluhlu olubanzi lweemveliso zabalandeli bakaloliwe, kubandakanywa abalandeli be-centrifugal enye/ephindwe kabini, abalandeli be-centrifugal abangasemva, kunye nabalandeli be-axial, kunye nokwenziwa ngokwezifiso okukhoyo ukuhlangabezana neemfuno ezithile zokuhamba komoya. Abalandeli bethu basetyenziswa kakhulu kwizicelo ezahlukeneyo ezifana ne-air cabin air conditioning, ukupholisa i-traction kunye ne-braking system, i-aircondition ye-passenger compartment kunye ne-air conditioning, i-ventilation yekhabhinethi yombane kunye nokupholisa izixhobo ze-elektroniki, kunye nokupholisa icandelo lamandla ebhodi.
