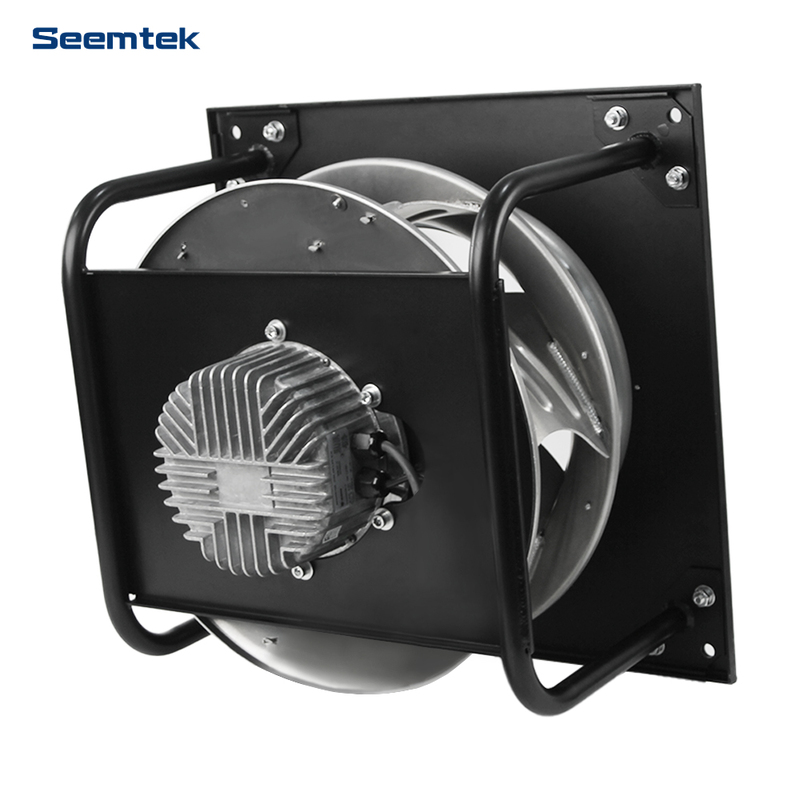

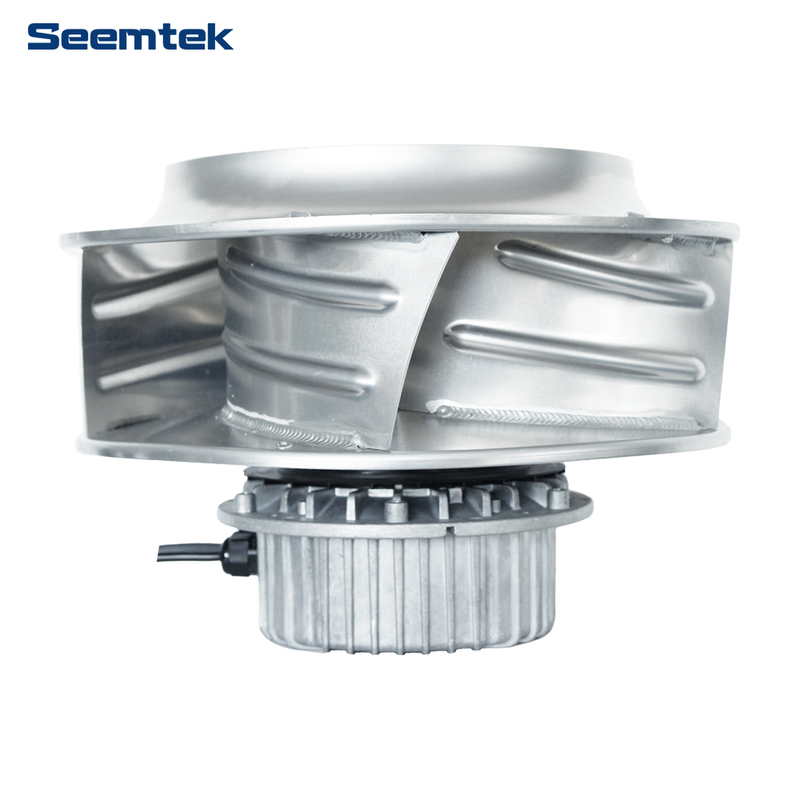

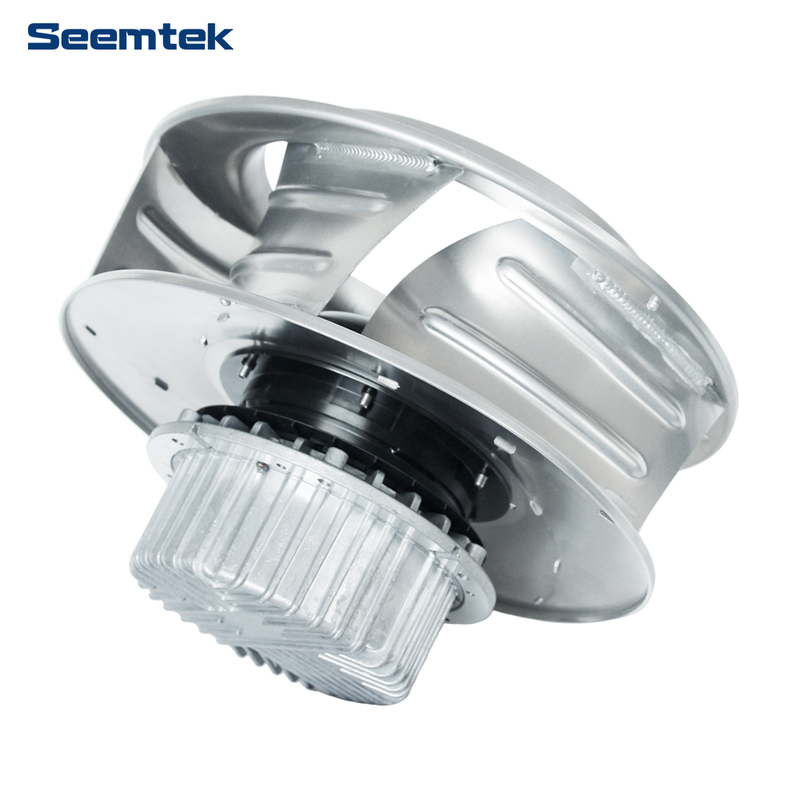

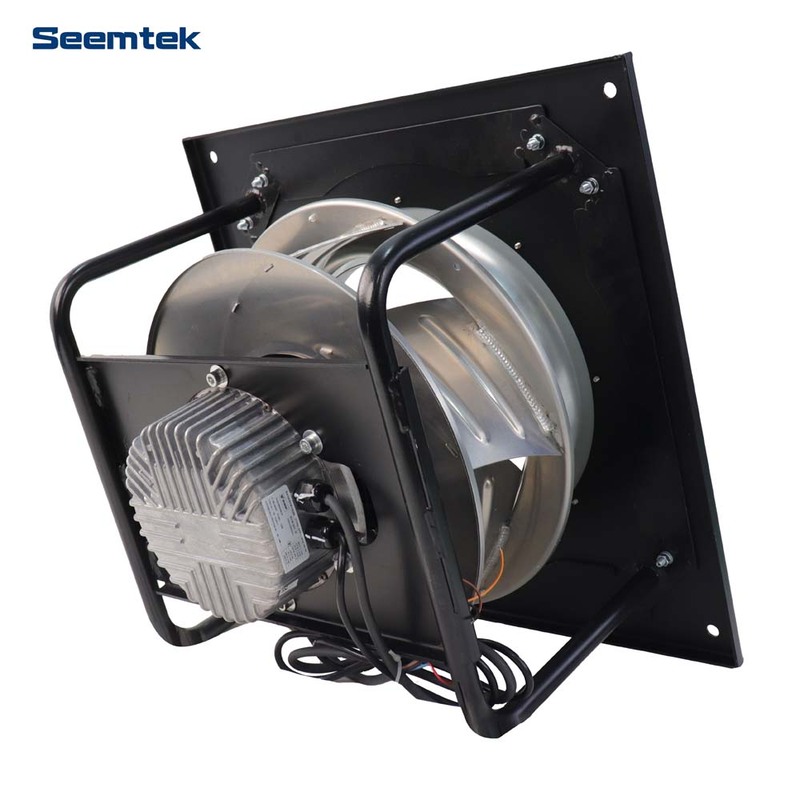

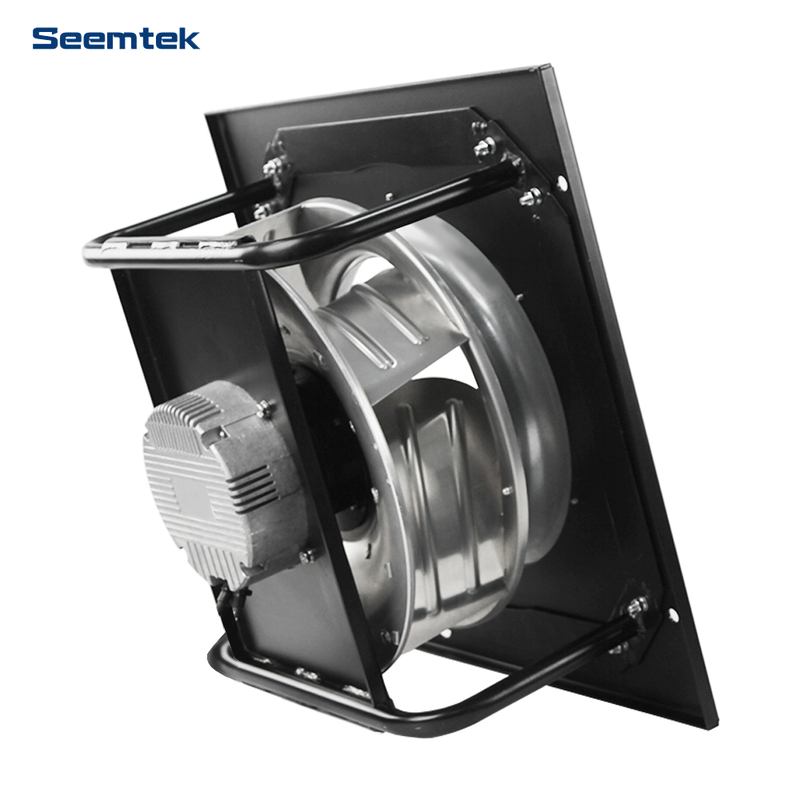

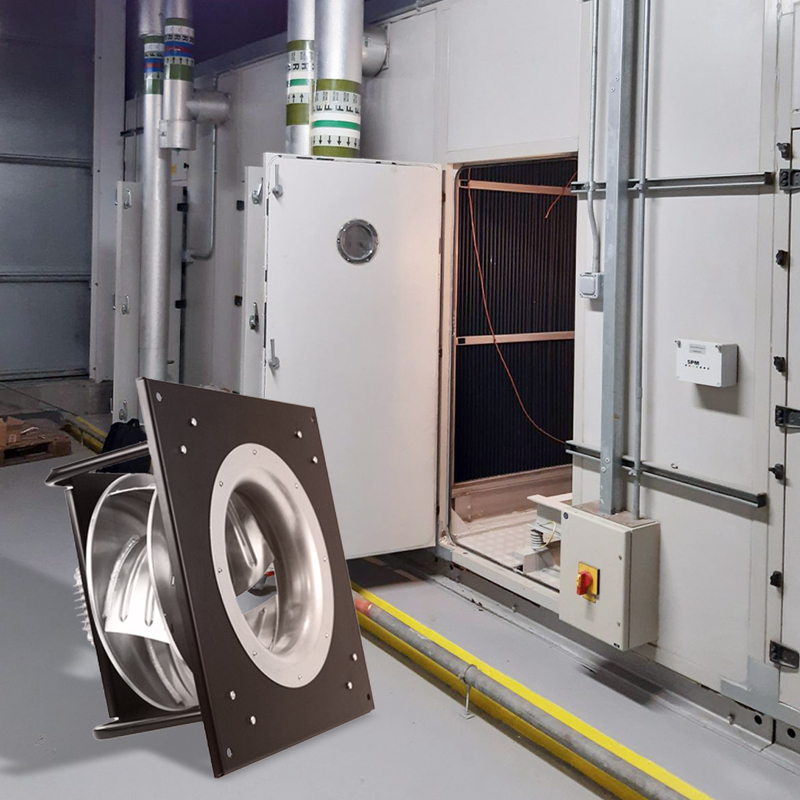

Umgangatho ophezulu we-355mm 220v i-Centrifugal Impellers egobile ngasemva ene-Bracket yeNkxaso

Uhlobo lombane: AC

Uhlobo lweMoto: I-BLDC yaNgaphandle ye-Rotor Motor

I-Impeller Diameter: 355mm

I-Impeller Material: iAluminiyam

Ukulawula isantya: 0-10VDC

Uhlobo loKhuselo: IP54

Iklasi yokuvala: F

Ubushushu bokusebenza : - 25 ℃ ~ +60 ℃

Ukukhuselwa kweMoto: ukuKhuselwa kwe-Rotor etshixiweyo, ukuKhuselwa kwePolarity umva, uKhuseleko lwe-Thermal, i-Soft Start

BUZA KUTHI ISHITI YEDATHA

Iparameters Technical

Umzekelo No.	Voltage ikaliwe	Ukulinganiswa kwangoku	Ukulinganiswa kwamandla	Isantya esinexabiso	Ukuhamba komoya	Uxinzelelo Lomoya	Inqanaba lomsindo	Curve
Umzekelo No.	VAC	A	W	rpm	m³ / h	Pa	I-dBA	Curve
K3E-2A355-Y2-11	230	5. 04	610	2050	3915	770	73	A
K3E-3A355-Y3-08	380	1. 91	1120	2700	5934	1289	75	B

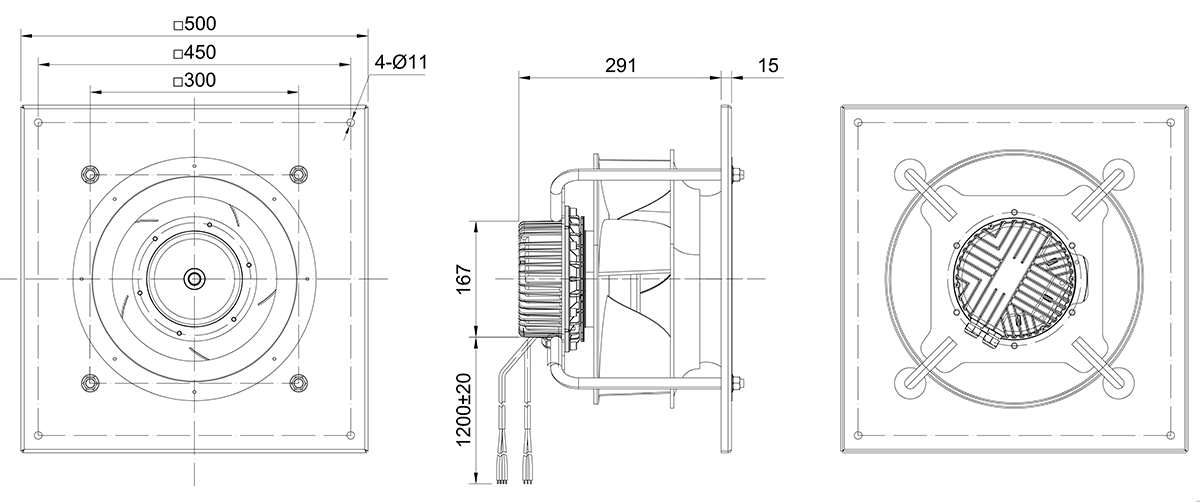

Ulwandlalo Ukuzoba

B3E-2A355-Y2-11

B3E-3A355-Y3-08

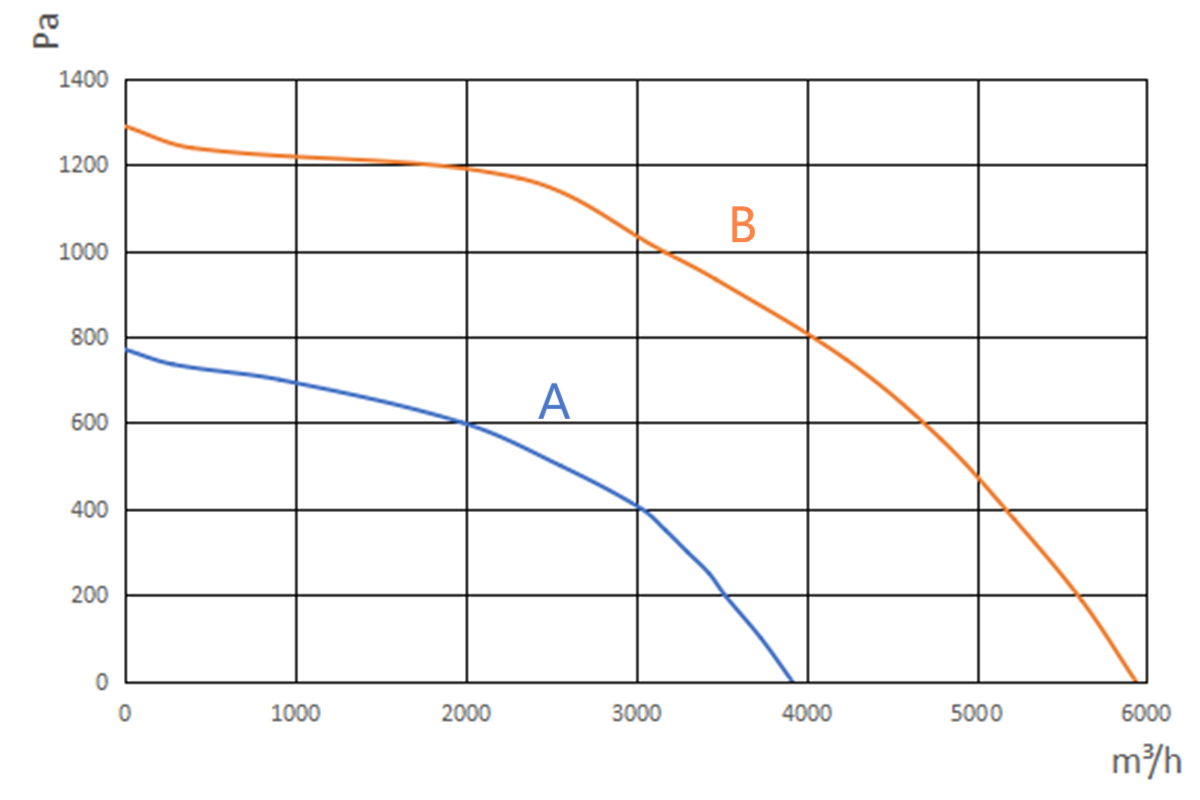

Ijika lokuSebenza

355

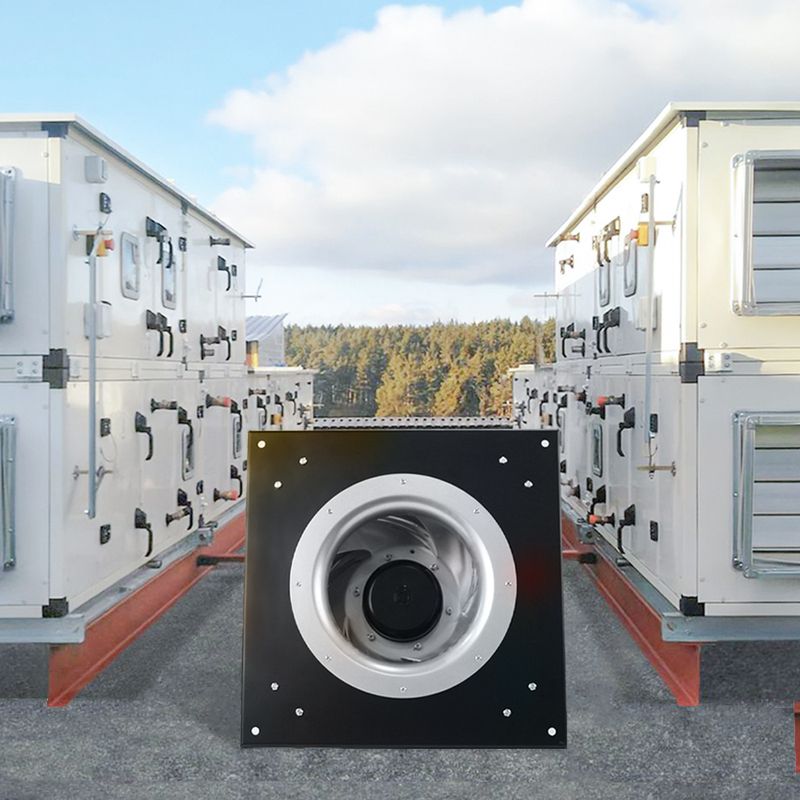

Field Fields

komoya

Kuyilo lwezixhobo zokungenisa umoya, impilo yabantu kunye nentuthuzelo yingqwalasela ephambili. Ingxolo ephantsi, abalandeli bentsebenzo ephezulu enikezelwa nguSeemtek baqinisekisa ukuhamba komoya ngokufanelekileyo ngelixa bephucula induduzo kunye nokukhuthaza indawo enempilo. Ngokudibanisa iisistim ze-Seemtek zokuqhuba amandla asebenzayo kunye nobuchwepheshe bokulawula obukrelekrele, abalandeli bethu be-biomimetic bahambisa ukusebenza okuzinzile kunye nokusebenza ngokufanelekileyo kuluhlu olubanzi lwezicelo, ukugcina amanqanaba engxolo aphantsi aphantse angabonakali. Inkqubo efanelekileyo yokungenisa umoya yangoku izolile, iyingqondi, kwaye inokuthenjwa kakhulu, ifezekisa ukusebenza kakuhle kwamandla kunye nokusebenza kwezoqoqosho ngolawulo oluchanekileyo kunye nohlengahlengiso olunengqondo olusekwe kwimfuno.

Field Fields

ICT

Ukuqinisekisa ukusebenza okuthembekileyo kwamaziko ogcino-lwazi, izixhobo zokungenisa umoya ezisebenzayo nezokulawula imozulu zibalulekile. Kumaziko amakhulu eenkcukacha okanye ii-hubs zonxibelelwano, iiseva, izixhobo zokugcina, kunye neeprosesa zivelisa ubuninzi obushushu ngexesha lokusebenza, kwaye nakuphi na ukungaphumeleli kokutshatyalaliswa kobushushu kunokukhokelela ekunciphiseni ukusebenza okanye ukungaphumeleli kwenkqubo.

Izisombululo ze-fan ze-Seemtek, ezenzelwe usetyenziso lweziko ledatha, zidibanisa ulawulo olukrelekrele kunye nohlengahlengiso lwetekhnoloji ukuze kugcinwe ulawulo oluchanekileyo lokuhamba komoya, ukuqinisekisa ukuba ubushushu bangaphakathi kunye namanqanaba omswakama ahlala ngaphakathi koluhlu olufunwayo. Kungakhathaliseki ukuba phantsi komthwalo ophezulu okanye kwiimeko eziguquguqukayo, abalandeli be-Seemtek banikezela ukupholisa okuzinzile kwizixhobo ezibalulekileyo ze-IT, okwenza kube yinto ebalulekileyo yokusebenza ngokufanelekileyo nangokuthembekileyo kwamaziko edatha.

Field Fields

Abalandeli Retrofit

Ukuphucula iinkqubo zabalandeli bemveli kunye nabalandeli be-Seemtek EC yindlela esebenzayo yokufezekisa ukonga amandla kunye nokusebenza ngobukrelekrele. I-Fan retrofit ayifuni ukutshintshwa kwenkqubo epheleleyo-i-Seemtek inikezela ngezisombululo ze-EC fan ezihambelana ngokupheleleyo nabalandeli be-AC abakhoyo, okwenza kube lula, ukufakwa kweendleko.

Xa kuthelekiswa nabalandeli be-AC abaqhelekileyo, abalandeli be-Seemtek EC badibanisa ii-motor eziphezulu kunye nobuchwepheshe obuphezulu bokulawula, ukuvumela ukulungiswa kwesantya esichanekileyo kunye nokunciphisa kakhulu ukusetyenziswa kwamandla-ukuya kwi-30% yokonga amandla. Ukongeza, abalandeli be-EC bathule, baxinene ngakumbi, kwaye kulula ukudibanisa kwiiseto ezikhoyo, zinceda ukunciphisa zombini ukusetyenziswa kwendawo kunye namanqanaba engxolo.
